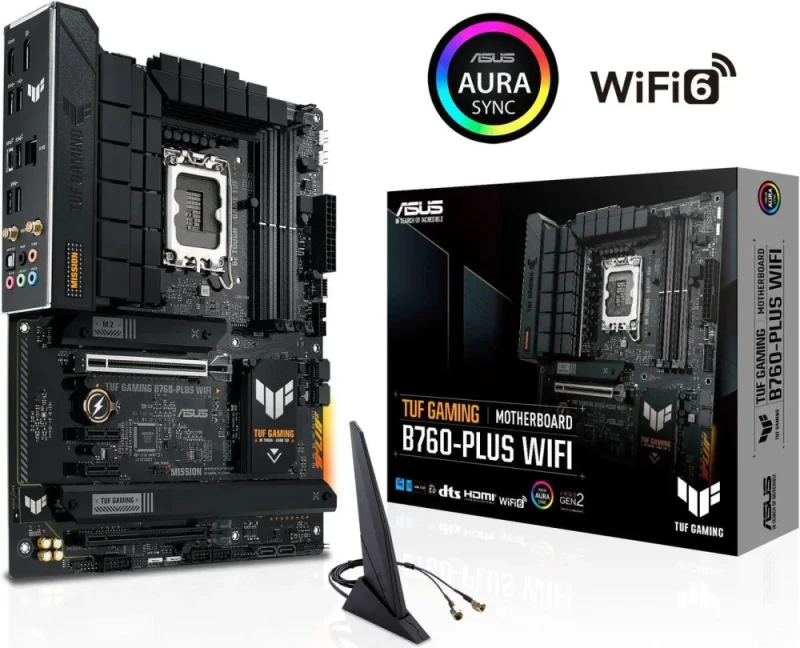

ASUS TUF GAMING B760-PLUS WIFI Intel B760 (14th, 13th and 12th Gen) LGA 1700 ATX motherboard with PCIe 5.0, three PCIe 4.0 M.2 slots, DDR5, Realtek 2.5Gb Ethernet, DisplayPort, HDMI, SATA 6 Gbps,

The ASUS TUF Gaming B760-PLUS WIFI is a durable ATX motherboard for Intel LGA 1700 12th, 13th, and 14th Gen Core processors, built on the Intel B760 chipset with a robust 12+1+1 DrMOS power stage design, enlarged VRM heatsinks, and military-grade TUF components for reliable long-term performance.



It supports up to 192 GB of dual-channel DDR5 memory across four DIMM slots at speeds up to 7200+ MHz (OC) via ASUS OptiMem II. Expansion includes one PCIe 5.0 x16 SafeSlot Core+, one PCIe 4.0 x16 (x4 mode), two PCIe 3.0 x1 slots, three PCIe 4.0 x4 M.2 slots (all with heatsinks), and four SATA 6 Gb/s ports with RAID 0/1/5/10.

Connectivity features integrated Intel Wi-Fi 6E + Bluetooth 5.3, Realtek 2.5 GbE LAN, rear USB 3.2 Gen 2x2 Type-C (20 Gbps), front USB 3.2 Gen 2 Type-C header, DisplayPort 1.4, HDMI 2.1, Aura Sync RGB headers, and Realtek 7.1-channel audio with TUF Gaming audio enhancements.

Additional TUF-grade features include a pre-mounted I/O shield, ASUS SafeSlot Core+, M.2 Q-Latch, Q-LED diagnostics, and BIOS FlashBack, making the TUF Gaming B760-PLUS WIFI a rock-solid, future-ready foundation for high-performance gaming and productivity rigs.
