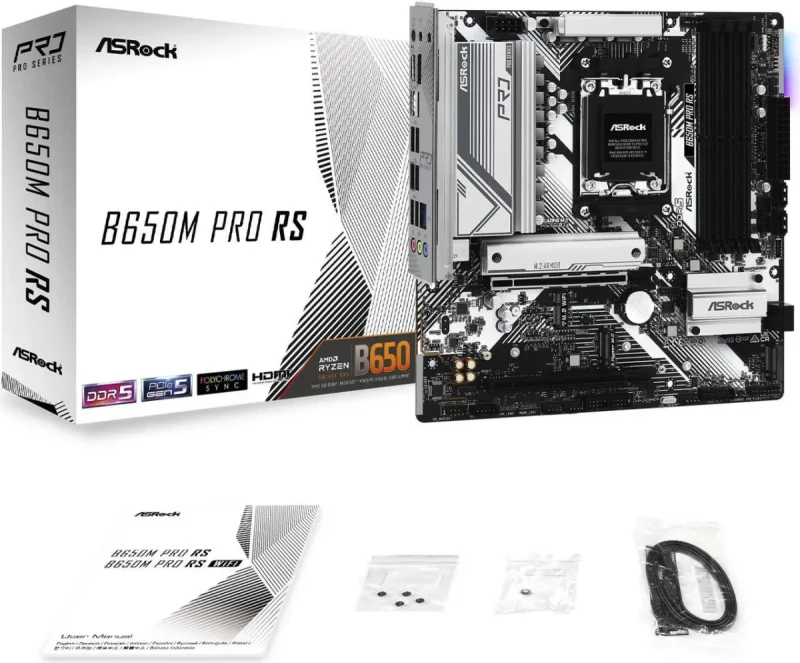

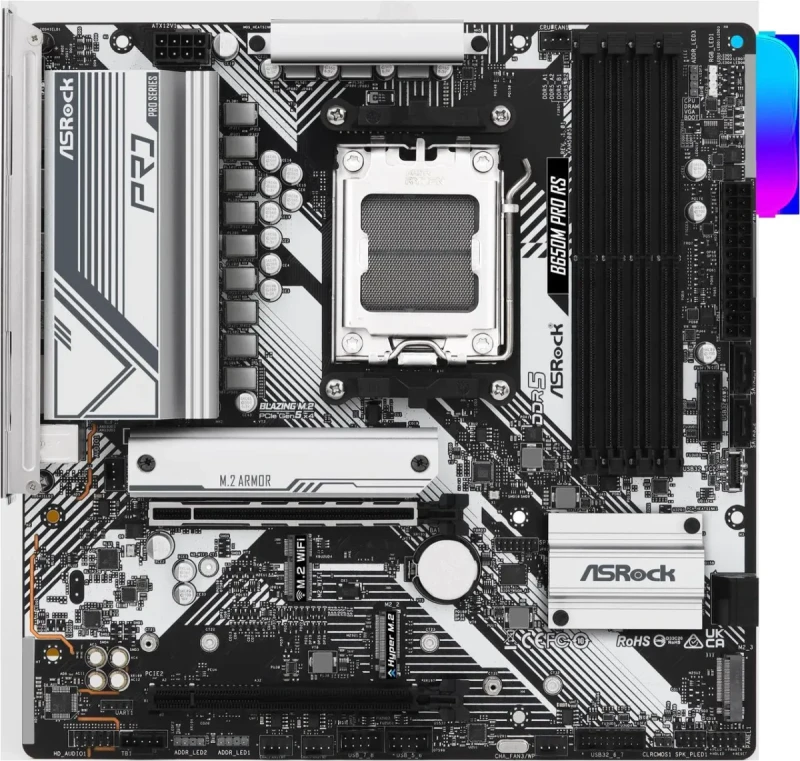

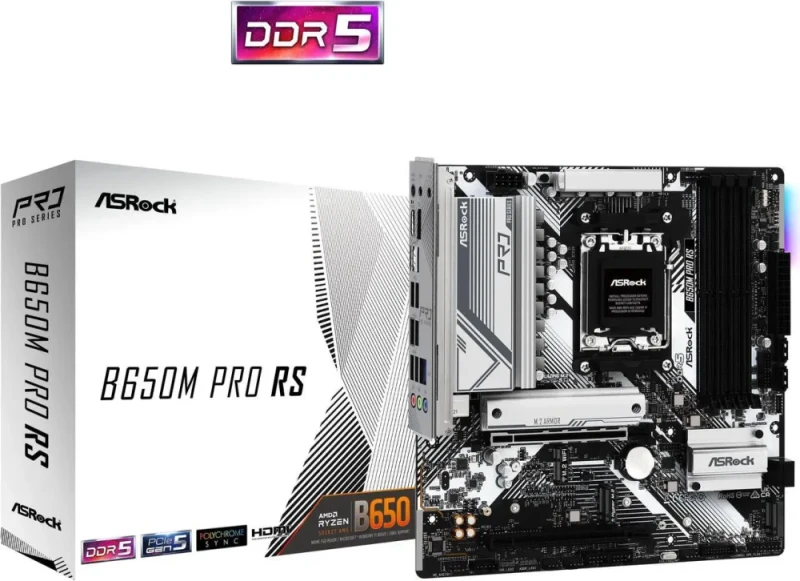

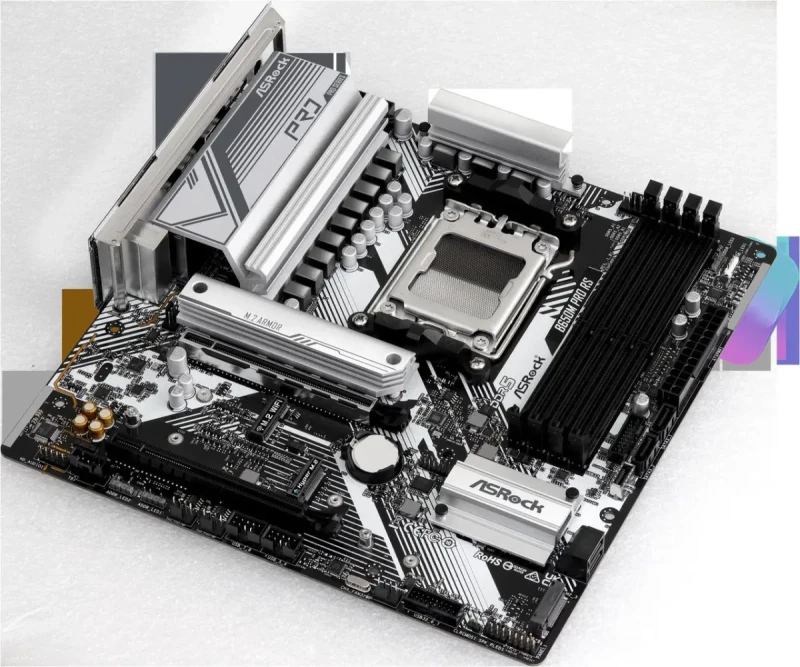

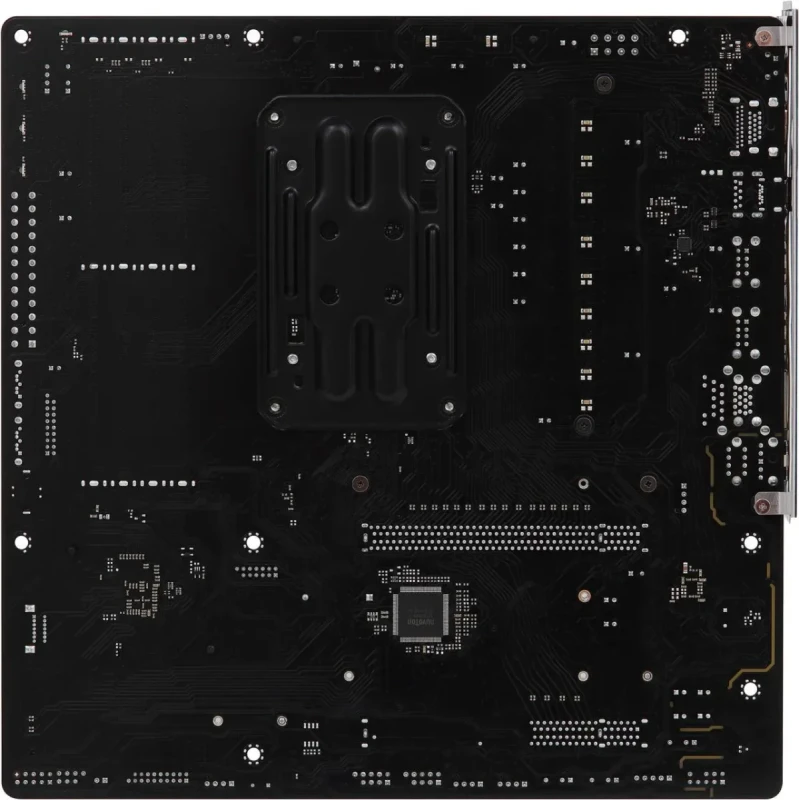

ASRock B650M PRO RS AM5 AMD B650 Micro ATX Motherboard

The ASRock B650M Pro RS is a capable Micro ATX motherboard built for AMD AM5 Ryzen 7000, 8000, and 9000 Series processors, featuring an 8+2+1 phase DrMOS power design with 50A stages and enlarged heatsinks for dependable performance and moderate overclocking.

It supports dual-channel DDR5 memory up to 128 GB across four DIMM slots with speeds reaching 7200+ MT/s (OC) via EXPO/XMP profiles. Expansion includes one reinforced PCIe 4.0 x16 slot, one PCIe 4.0 x4 slot, one PCIe 3.0 x1 slot, one PCIe 4.0 x4 M.2 slot, one PCIe 4.0 x2/SATA M.2 slot, one Hyper M.2 (PCIe 4.0 x4), and four SATA 6Gb/s ports with RAID 0/1/10 support.

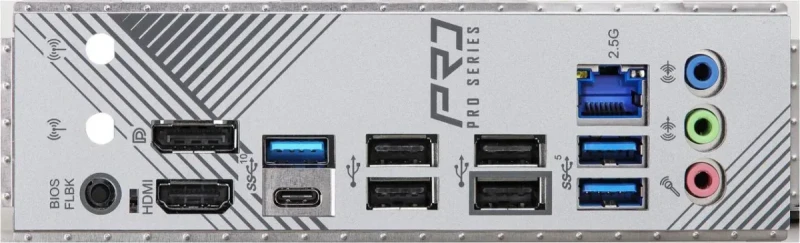

Connectivity features Realtek 2.5 GbE LAN, Realtek ALC897 7.1-channel audio, Dragon 2.5G LAN option, HDMI 2.1, DisplayPort 1.4, rear USB 3.2 Gen2 Type-C (10 Gbps), front USB 3.2 Gen1 Type-C header, and four Polychrome RGB headers (two ARGB, two RGB). Additional conveniences include BIOS FlashBack, pre-installed I/O shield, and full Nahimic Audio enhancements, making the B650M Pro RS an excellent value choice for compact, high-performance Ryzen gaming and productivity builds.
