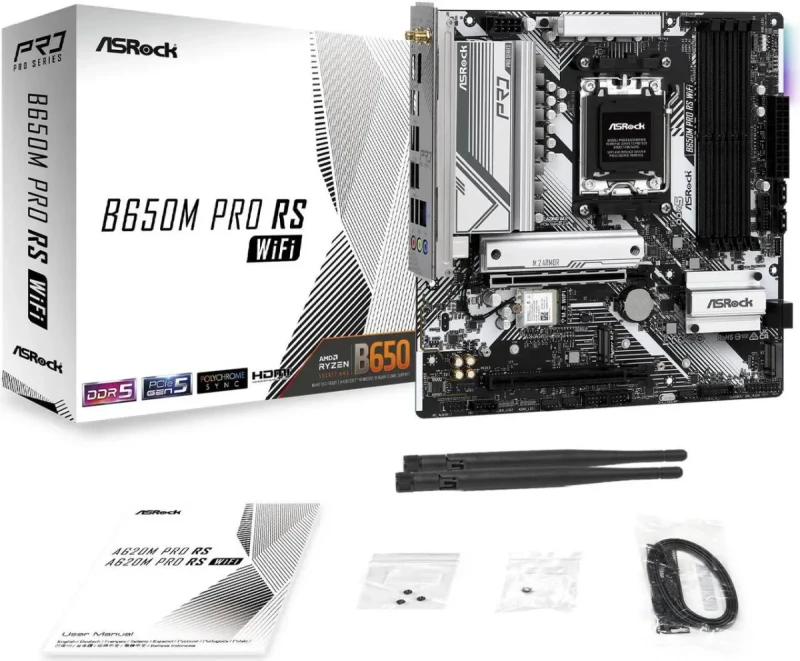

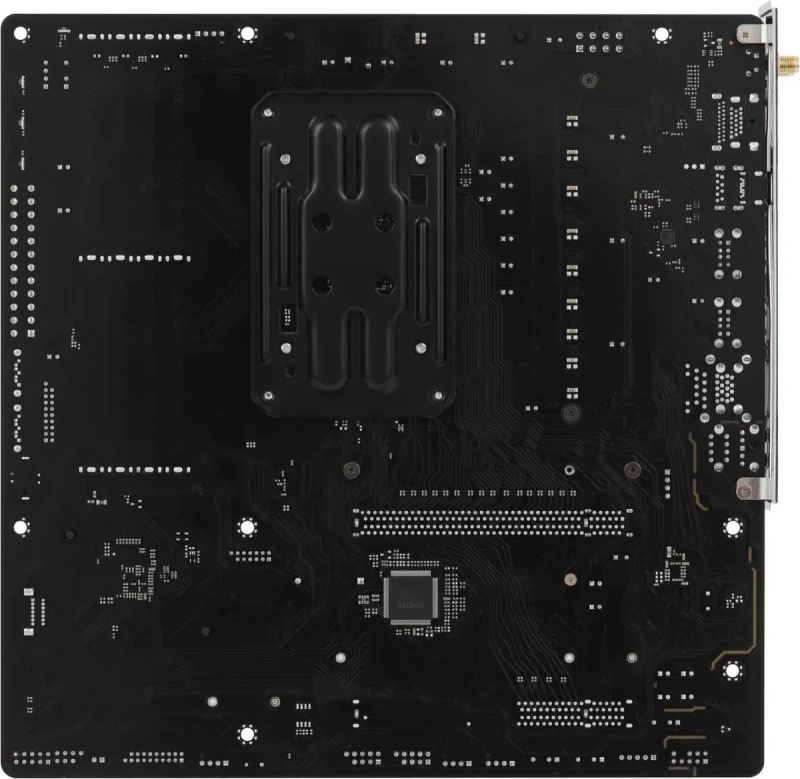

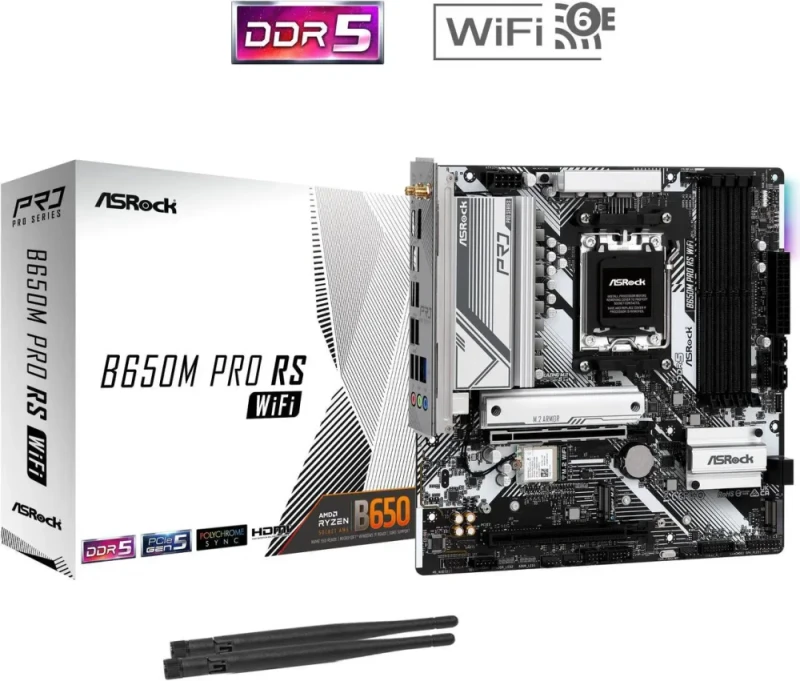

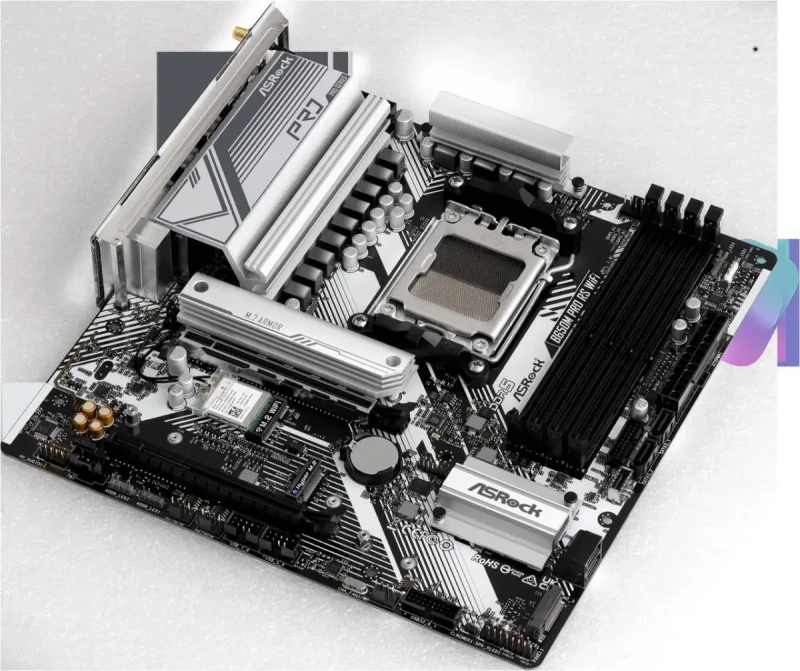

ASRock B650M Pro RS WiFi AM5 AMD B650 Micro ATX Motherboard

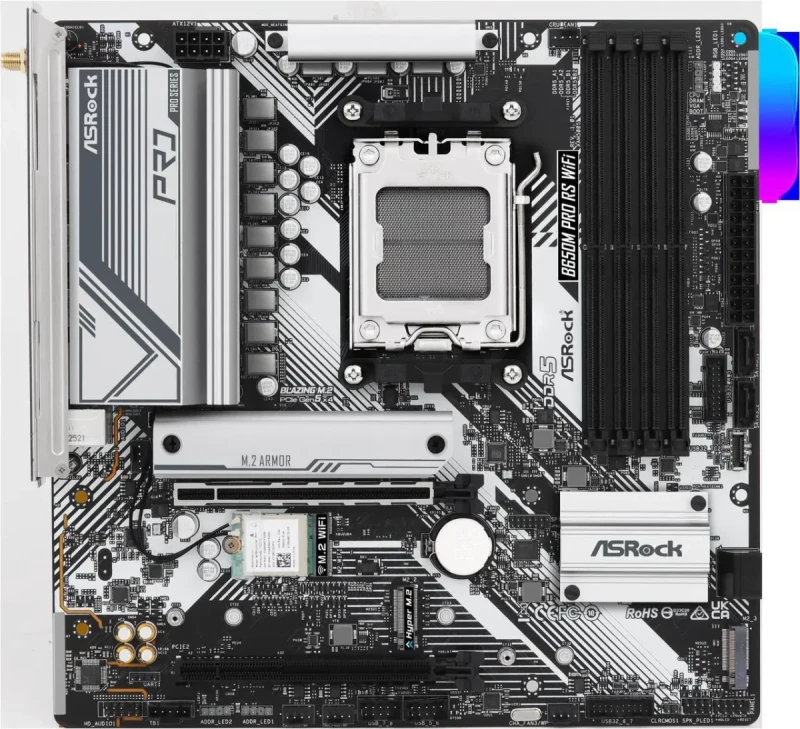

The ASRock B650M Pro RS WiFi is a feature-rich Micro ATX motherboard built for AMD AM5 Ryzen 7000, 8000, and 9000 Series processors, featuring an 8+2+1 phase DrMOS power design with 50A stages and enlarged heatsinks for stable performance and moderate overclocking.

It supports dual-channel DDR5 memory up to 128 GB across four DIMM slots with speeds reaching 7200+ MT/s (OC) via EXPO/XMP profiles. Expansion includes one reinforced PCIe 4.0 x16 slot, one PCIe 4.0 x4 slot, one PCIe 3.0 x1 slot, three M.2 slots (one Hyper M.2 PCIe 4.0 x4, one standard PCIe 4.0 x4, one PCIe 4.0 x2/SATA), and four SATA 6Gb/s ports with RAID 0/1/10 support.

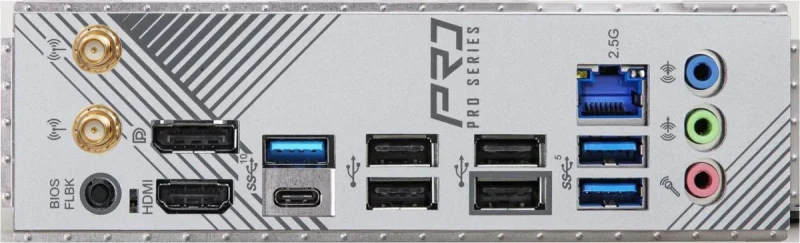

Connectivity is fully modern with integrated Wi-Fi 6E + Bluetooth 5.2, Dragon 2.5 GbE LAN, Realtek ALC897 7.1-channel audio with Nahimic enhancements, HDMI 2.1, DisplayPort 1.4, rear USB 3.2 Gen2 Type-C (10 Gbps), front USB 3.2 Gen1 Type-C header, and four Polychrome RGB headers (two ARGB, two RGB). Additional conveniences such as BIOS FlashBack and pre-installed I/O shield make the B650M Pro RS WiFi an excellent, wireless-enabled value choice for compact, high-performance Ryzen gaming and productivity systems.
