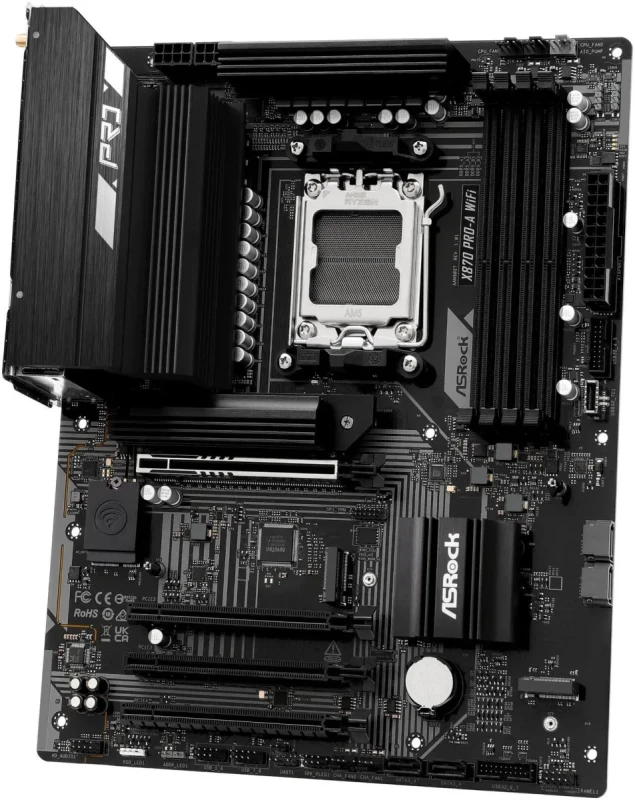

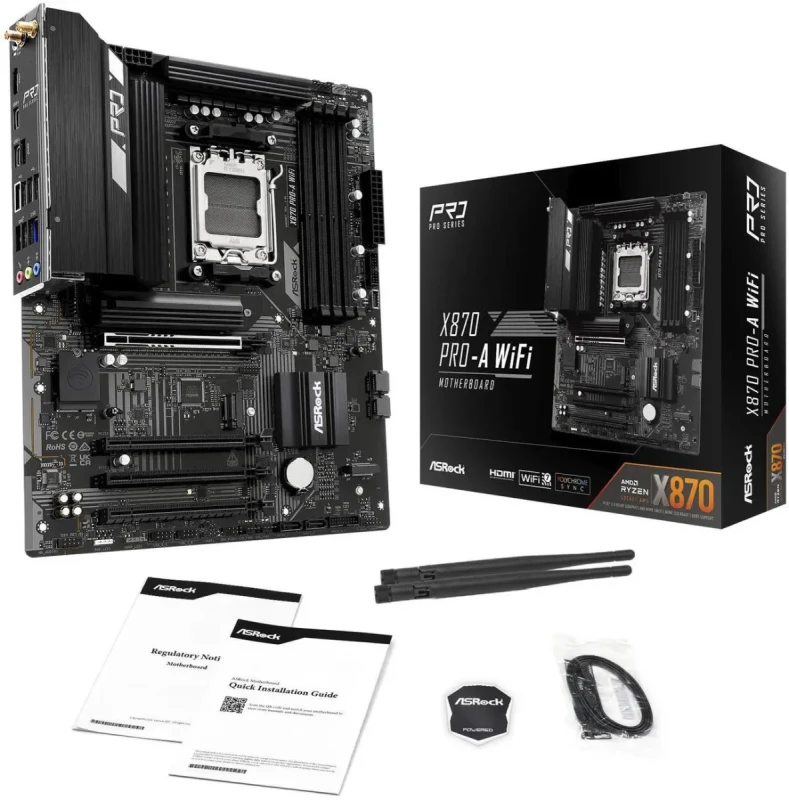

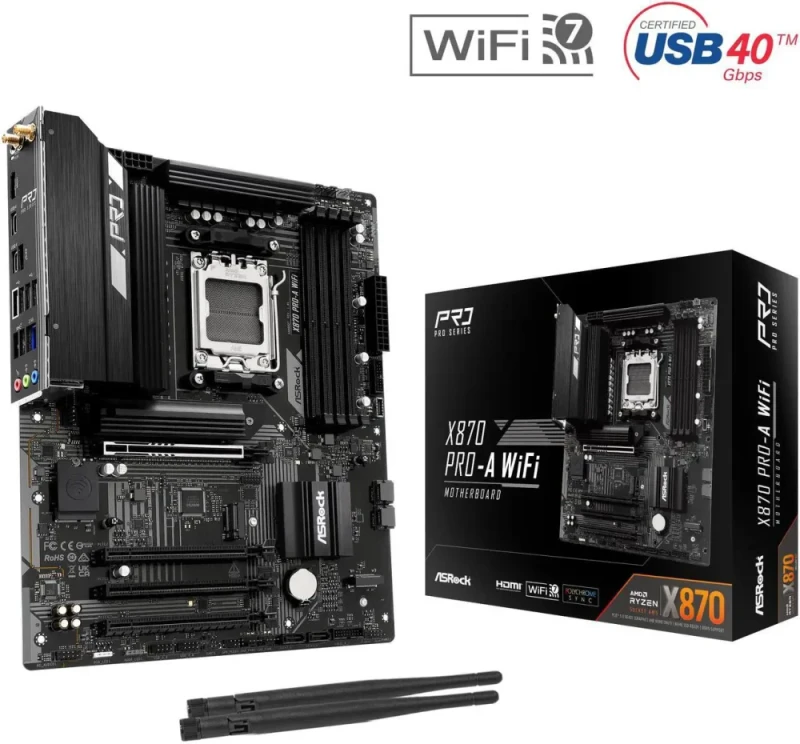

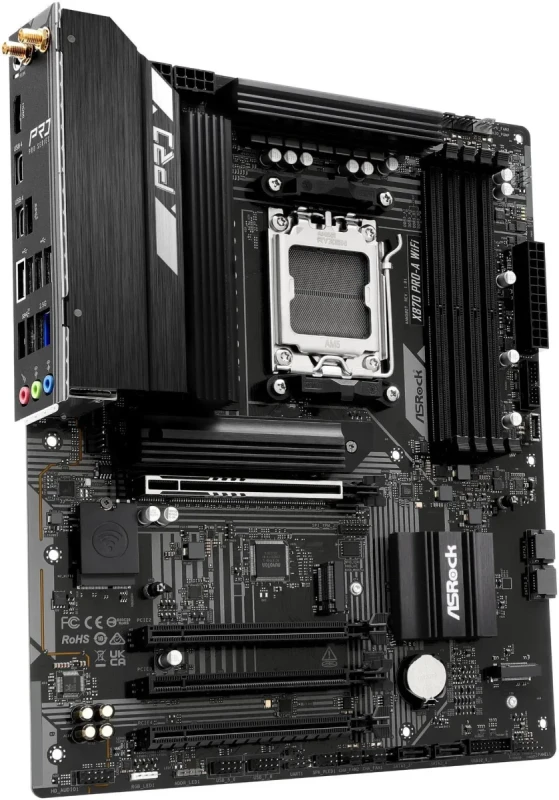

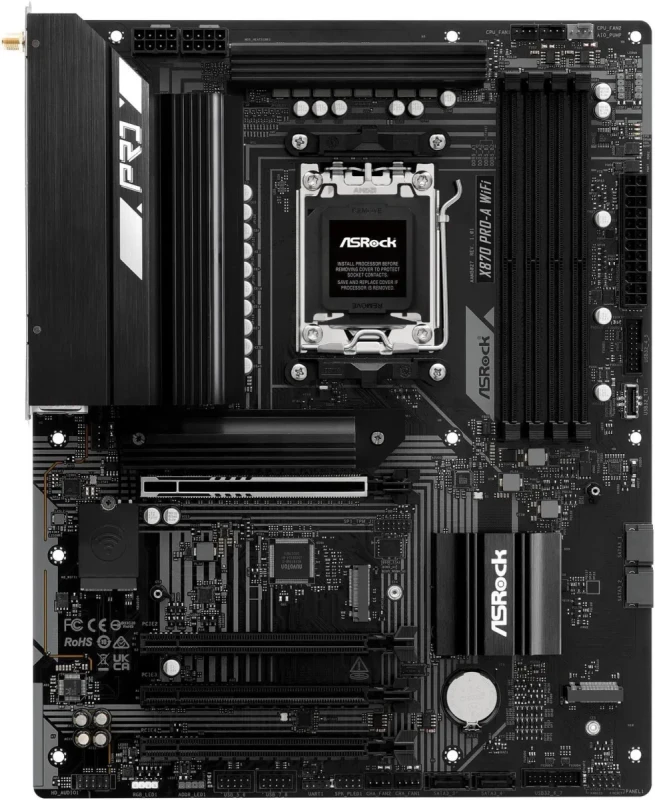

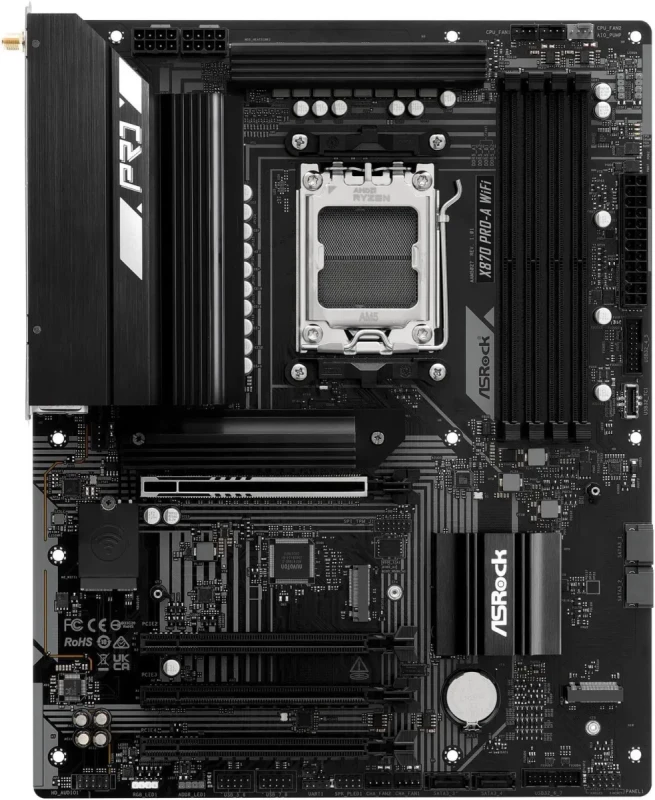

The ASRock X870 Pro-A WiFi is a full-featured ATX motherboard built for AMD AM5 Ryzen 7000, 8000, and 9000 Series processors, delivering robust power through a 16+2+1 phase design with 80A DrMOS Smart Power Stages, enlarged VRM heatsinks, and an 8-layer PCB for stable performance even under extreme overclocking.
It supports four DDR5 DIMM slots with capacities up to 256 GB and speeds exceeding 8000+ MT/s (OC) via EXPO/XMP profiles. Expansion includes one reinforced PCIe 5.0 x16 slot, one PCIe 4.0 x16 (x4 mode), four M.2 slots (one PCIe 5.0 x4 with active cooler, three PCIe 4.0 x4), and four SATA 6Gb/s ports with RAID support.
Connectivity is future-proof with integrated Wi-Fi 7 + Bluetooth 5.4, Realtek 2.5 GbE LAN, USB 3.2 Gen2x2 Type-C (20 Gbps) rear I/O, front-panel USB 3.2 Gen2 Type-C header, HDMI 2.1, DisplayPort 1.4, Realtek ALC1220 7.1-channel audio, and Polychrome RGB headers. Additional conveniences such as BIOS FlashBack, pre-installed I/O shield, and multiple fan/pump headers make the X870 Pro-A WiFi an excellent, high-value foundation for premium AMD gaming and workstation builds.
