ASRock X870 RIPTIDE WIFI AM5 AMD X870 ATX Motherboard

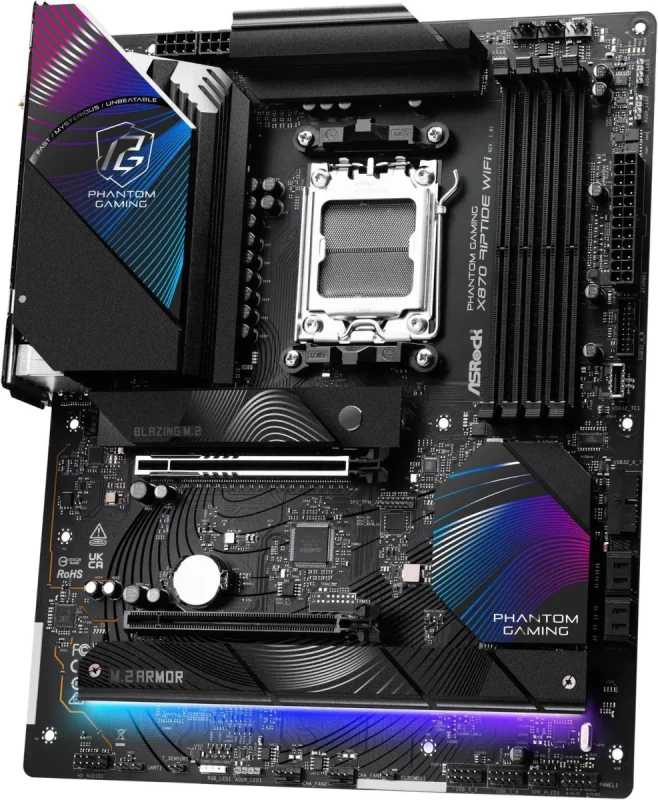

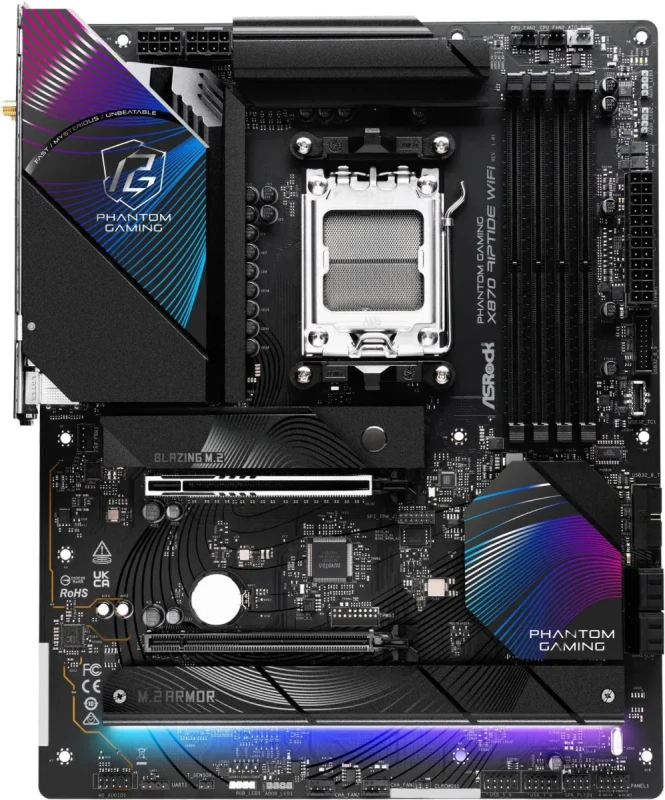

The ASRock X870 Riptide WiFi is a high-performance ATX motherboard designed for AMD Ryzen 7000, 8000, and 9000 Series processors on Socket AM5. It features a robust 16+2+2 phase DrMOS power design with 80A Smart Power Stages, enlarged VRM heatsinks, and an 8-layer PCB for stable overclocking and efficient thermal management.



It supports four DDR5 DIMM slots with capacities up to 256 GB and speeds exceeding 8000+ MT/s (OC) via EXPO/XMP profiles. Expansion includes one reinforced PCIe 5.0 x16 slot, one PCIe 4.0 x16 (x4 mode), three M.2 slots (one PCIe 5.0 x4 with heatsink, two PCIe 4.0 x4), and four SATA 6Gb/s ports with RAID support.

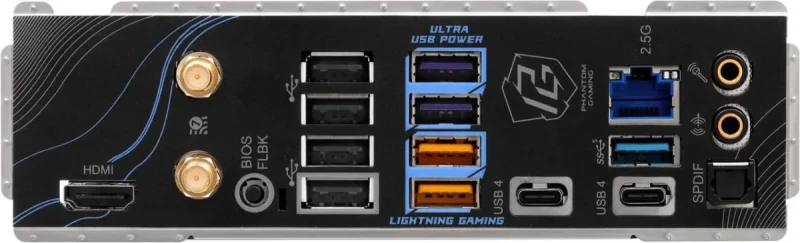

Connectivity stands out with integrated Wi-Fi 7 + Bluetooth 5.4, Killer 2.5 GbE LAN, USB 3.2 Gen2x2 Type-C (20 Gbps), HDMI 2.1, DisplayPort 1.4, Realtek ALC1220 7.1-channel audio, and Polychrome RGB lighting. Additional features like BIOS Flashback, pre-installed I/O shield, and multiple fan/ARGB headers make the X870 Riptide WiFi a versatile, future-proof platform for premium AMD gaming and productivity builds.
