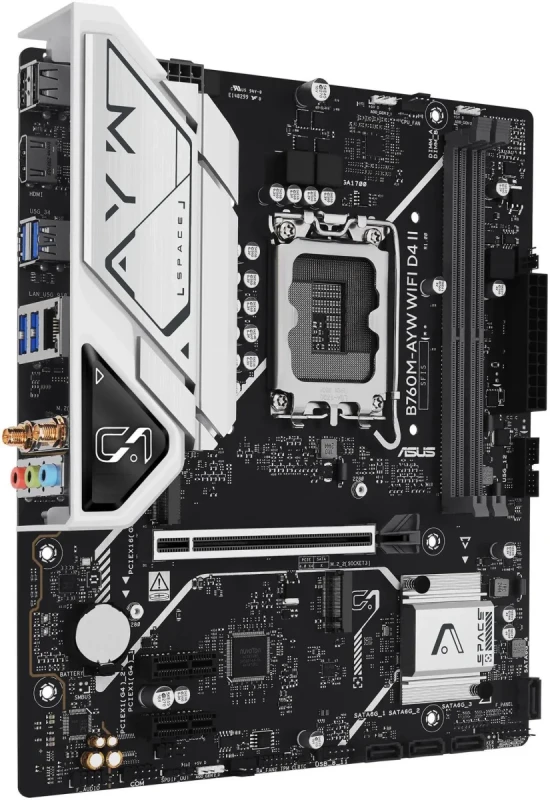

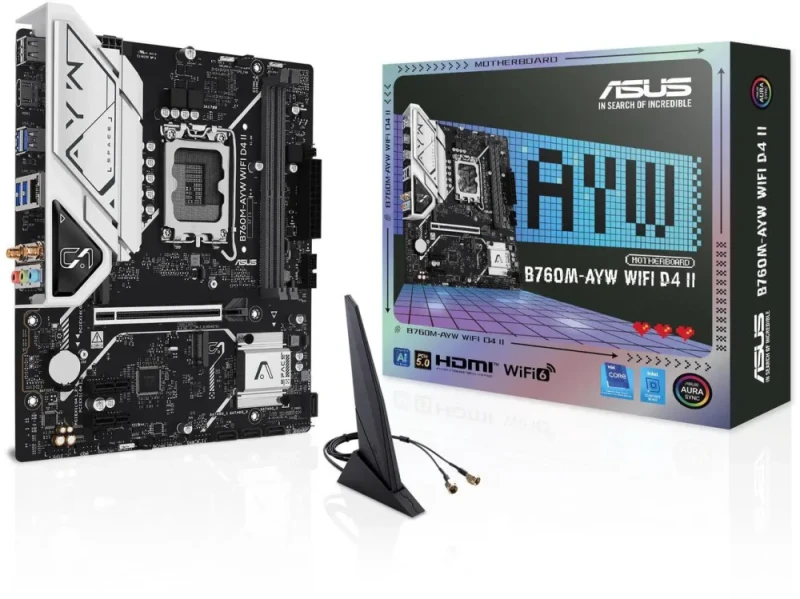

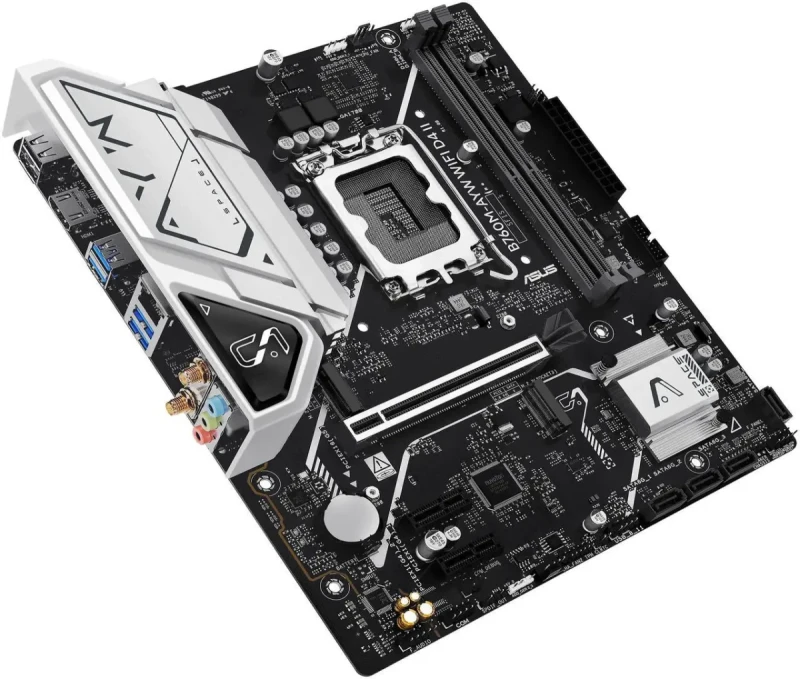

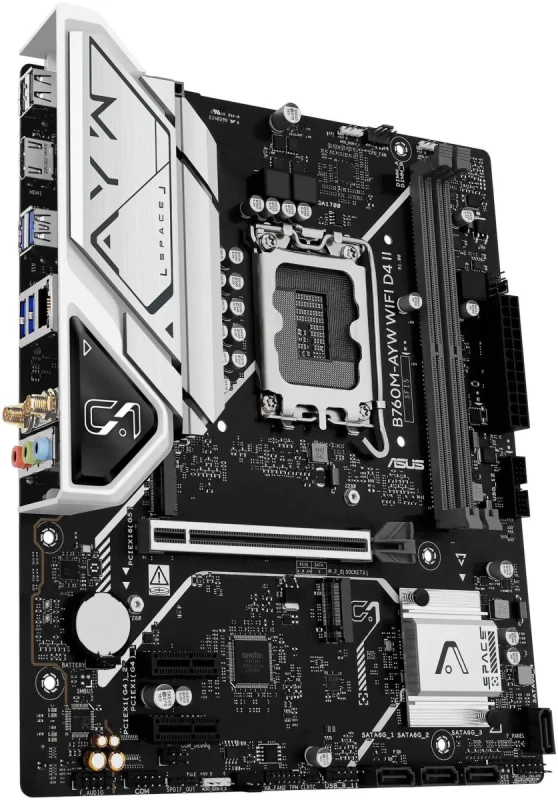

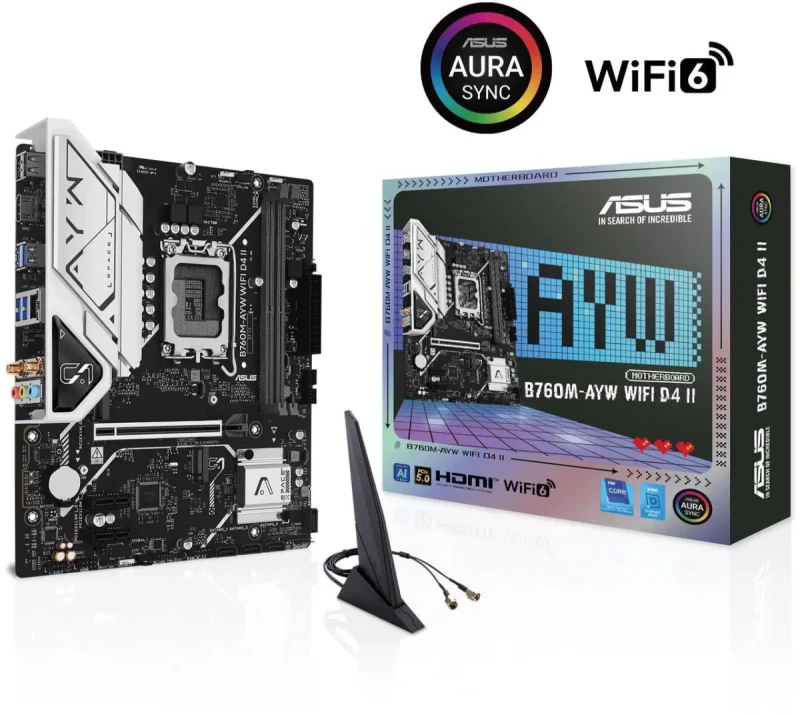

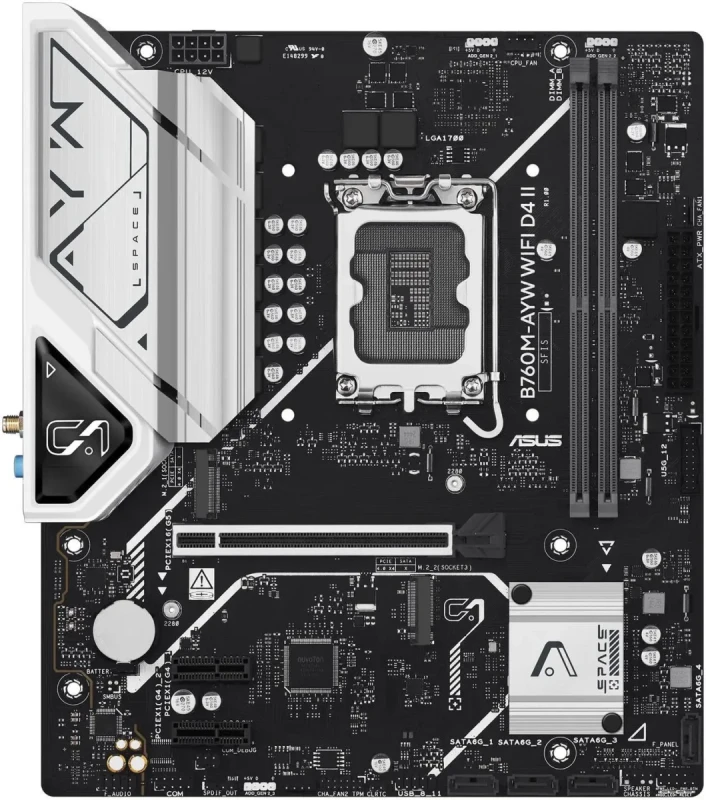

ASUS B760M-AYW WIFI D4 II LGA 1700 Intel B760 Micro ATX Motherboard

The ASUS Prime B760M-AYW WIFI D4 II is a Micro ATX motherboard designed for Intel LGA 1700 sockets, supporting 12th, 13th, and 14th Generation Intel Core, Pentium Gold, and Celeron processors. Based on the Intel B760 chipset, it features an 8+1+1 phase DrMOS power design with enlarged VRM heatsinks, dual-channel DDR4 memory support up to 128GB across four DIMM slots, and maximum speeds of 5333 MHz (OC) with ASUS OptiMem II trace layout optimization.

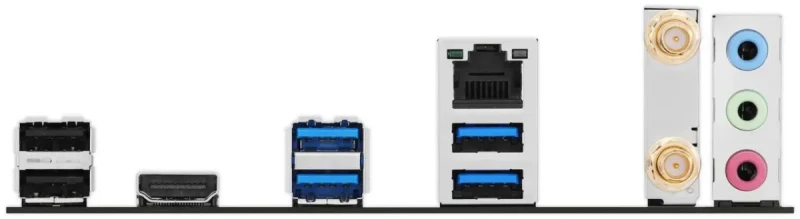

Expansion includes one PCIe 5.0 x16 slot with SafeSlot Core+ reinforcement, one PCIe 3.0 x16 (x4 mode) slot, and one PCIe 3.0 x1 slot. Storage comprises two M.2 slots (both PCIe 4.0 x4, one with dedicated heatsink) and four SATA 6Gb/s ports supporting RAID 0/1/5/10. Connectivity features Intel Wi-Fi 6 (802.11ax), Bluetooth 5.2, Realtek 2.5Gb Ethernet, rear USB 3.2 Gen 2 Type-C, front-panel USB 3.2 Gen 2 Type-C header, HDMI 2.1, DisplayPort 1.4, and four Aura Sync RGB headers.

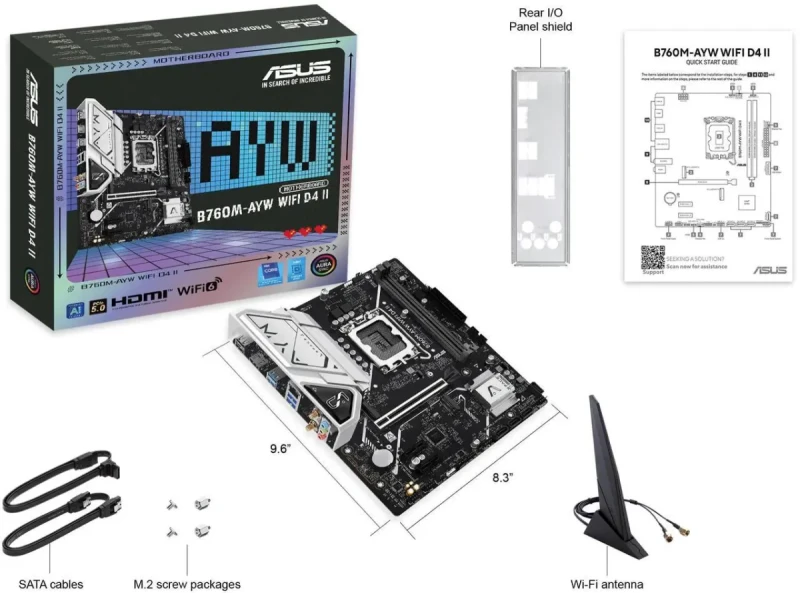

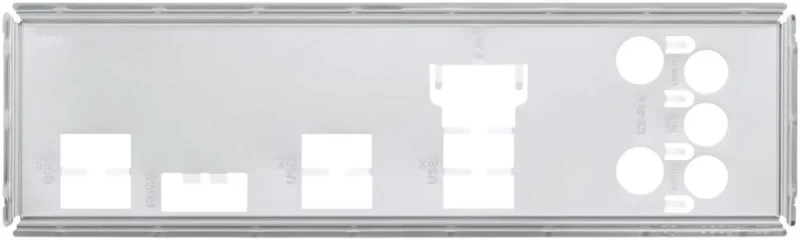

Additional conveniences include a pre-mounted I/O shield, Q-LED core diagnostic indicators, BIOS FlashBack button, and FlexKey functionality, making the ASUS Prime B760M-AYW WIFI D4 II a solid, compact platform for mainstream Intel-based gaming and productivity systems.
